GZG provides 3 types of pintle chains, 400 class, 500 class and 700 class.The dimensions of them are standard and we could control it in a reasonable tolerance.If you are looking for non-standard cast pintle chain, kindly let us know and we'll discuss your request.
Poiščite 3 vrste dimenzij verige z lito iglo, kot je prikazano spodaj.

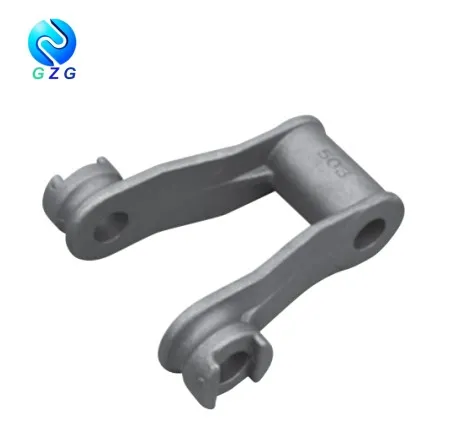

1. Cast 400 Class Pintle Verige
 | |||||||
| Veriga št. | Višina tona | Dimenzije | Ultimate moč | Utež | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | kg/m | |
| 442 | 34.93 | 26.92 | 50.80 | 19.05 | 7.94 | 27.00 | 2.23 |
| 445 | 41.40 | 26.92 | 50.80 | 19.05 | 7.94 | 27.00 | 2.38 |
| 452 | 38.25 | 27.69 | 56.36 | 21.43 | 9.26 | 31.00 | 3.27 |
| 455 | 41.40 | 28.45 | 57.94 | 21.43 | 9.26 | 31.00 | 3.13 |
| 462 | 41.50 | 36.58 | 65.09 | 23.81 | 11.11 | 39.00 | 4.02 |
| 477 | 58.62 | 31.75 | 64.29 | 25.40 | 11.11 | 43.00 | 3.27 |
| 488 | 66.27 | 41.00 | 75.00 | 25.40 | 11.11 | 49.00 | 4.61 |
 | |||||||
| Veriga št. | Višina tona | Dimenzije | Ultimate moč | Utež | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | kg/m | |
| 4103 | 78.11 | 47.60 | 87.00 | 38.00 | 19.01 | 124.00 | 9.23 |
| 4124 | 103.20 | 58.00 | 108.00 | 44.50 | 20.64 | 166.00 | 13.69 |
2. Lite verige razreda 500700
 | |||||||
| Veriga št. | Višina tona | Dimenzije | Ultimate moč | Utež | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | kg/m | |
| 503 | 76.70 | 50.80 | 107.20 | 33.30 | 14.00 | 90.00 | 9.23 |
| 504 | 103.10 | 73.20 | 146.00 | 42.90 | 16.00 | 122.00 | 12.65 |
 | |||||||
| Veriga št. | Višina tona | Dimenzije | Ultimate moč | Utež | |||
| A | B | C | D | ||||
| mm | mm | mm | mm | mm | KN | kg/m | |
| 710 | 119.63 | 78.60 | 142.88 | 37.00 | 17.46 | 122.00 | 9.38 |
| 720 | 152.40 | 45.97 | 90.09 | 38.10 | 17.46 | 122.00 | 6.25 |
| 720S | 152.40 | 47.70 | 92.40 | 39.60 | 19.05 | 167.00 | 7.74 |
| 730 | 41.50 | 50.80 | 96.00 | 44.45 | 19.05 | 187.00 | 8.93 |
Kako zapakiramo verige?
As the picture shows, normally we don't use carton box as how we pack roller chain. Instead, we put cast chain or drop-forged chain in transparent bag first, then use plywood case to protect them from damage.
Koliko načinov lahko stranka izbere za plačilo in prevoz?
Za plačilo stranki v tujini svetujemo, da izbere T/T, vendar je sprejemljiv tudi drug način plačila pri nas.
Za prevoz večina strank izbere pomorskega prevoza in kopenskega prevoza za velika naročila, izbere ekspresno za majhno naročilo (če stvar ni velika in težka).
Prosimo, da nam sporočite, če potrebujete pomoč, nam pošljite e--e-pošto ali nas pokličite, z veseljem bomo rešili vašo težavo.
